Reviewing Backup Details

Details displayed on dialogs related to backup and restore will vary based on the backup provider you selected during database provisioning (opens in a new tab).

You can use the pgEdge Backups page to review and manage database backups; the Backups page also provides access to links that allow you to perform an ad hoc backup or restore. To open the Backups page, select a database name in the navigation panel and select the Backups node from the navigation tree.

At the top of the Backups dialog, the header provides information about the selected database:

• The Database name.
• The length of time since the database was created.
• The name of the cluster in which the database resides.
• The PostgreSQL version used by the database.
• The version of Spock used by the database.

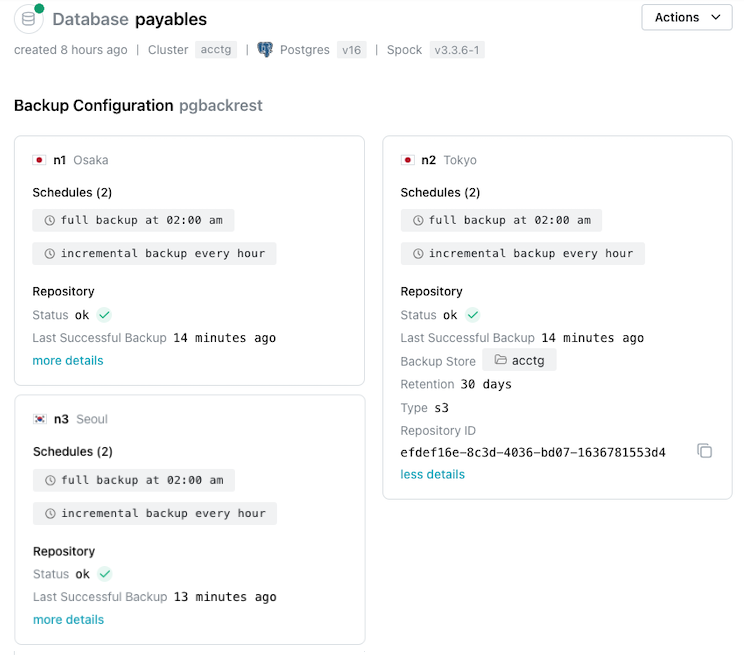

In the Backup Configuration panel, a pane for each database in your cluster displays configuration details for the database; select the more details link to view extended backup detail including:

• The node number, node name, and region identifier.
• The backup schedules for the database.
• The repository status.
• The length of time since the last backup.
• The name of the Backup Store used by the database.
• How long backups are retained for.
• The storage type of the Backup Store.
• The repository ID in which the backups are stored.

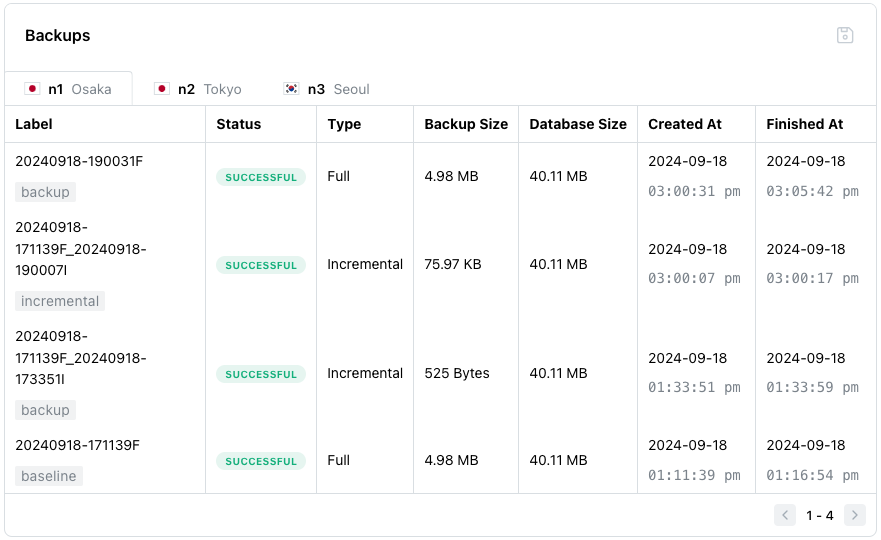

The Backups table displays the backups currently stored for the database:

The columns displayed in the Backups table will vary depending on your backup provider (opens in a new tab):

• Use the tabs across the top of the table to select the node you wish to see the backups for.
• The Label column (if you're using pgBackRest) or Name column (if you're using pg_dump) contains the backup identifier.
• The Status column displays SUCCESSFUL if the backup completed successfully.
• The Type column identifies the backup method; Full if the backup was a complete backup, Incremental if the backup only contains those changes that occurred since the last incremental backup, and Differential if it was a backup of only those changes that occurred since the last full backup.
• The Backup Size column displays the storage size of the database at the time of the backup.
• The Database Size column displays the storage size of the database.
• The Created At column displays the date and time the backup started.
• The Finished At column displays the date and time the backup completed.
• If you use pg_dump for your backups, you can use the context menu to the left of a backup name to access backup management options:
  • Select Download to download the backup archive.
  • Select Delete to delete the backup archive.

Note: If a pgBackRest backup fails, details are written to the tricorder log files. pg_dump backups that fail to complete are not displayed in the Backups table or written to log files.
